Yoke 7/8" Grade 100 Alloy Swivel Hoist Latch Hook - WLL 41,887 lbs, #X-175-22

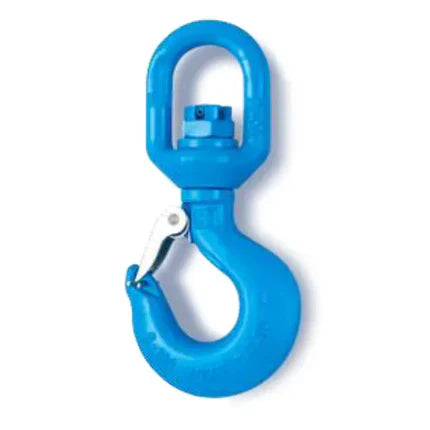

YOKE X-175-22 Grade 100 Alloy Swivel Hoist Hook with Latch – Rotates Under Load. Retains the Connection.

In hoisting and overhead lifting systems where chain, wire rope, or synthetic slings naturally want to twist during the lift, a fixed hook transfers that torsional stress directly into the rigging assembly. The YOKE X-175-22 solves that problem at the source — its swivel eye rotates under load, allowing the hook to align with the load path and absorb rotational movement without winding up the sling or introducing twist into the rigging system above it.

Swivel That Works Under Load

The X-175-22's swivel function isn't limited to pre-lift positioning — it's designed for rotation during active hoisting and load handling, making it the correct specification for electric hoists, manual chain hoists, overhead cranes, and lifting blocks where load spin and alignment correction are genuine operational requirements. The integrated safety latch retains slings, eye bolts, and lifting attachments throughout the handling cycle, limiting unintentional disengagement during movement and positioning.

Manufactured from forged Grade 100 alloy steel and rated at 19 tons WLL (41,887 lbs), the X-175-22 is suitable for use with chain slings, wire rope slings, and standard lifting attachments across industrial facilities, fabrication shops, warehouses, and maintenance operations.

Built to Grade 100 specification, the X-175-22 meets the higher strength requirements of Grade 100 chain sling systems and documented lifting programs requiring Grade 100 certified components throughout the rigging assembly.
