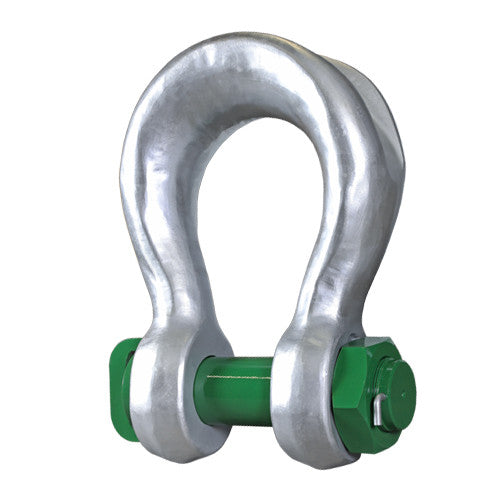

Van Beest Green Pin P-6033 Wide Body Sling Shackle - 55 Ton WLL

Green Pin® P-6033 Wide Body Shackles – Engineered for High-Capacity Sling Protection

When load distribution matters most, the Green Pin® P-6033 Wide Body Shackle delivers. Purpose-built for demanding sling applications, the P-6033's expanded bow diameter increases the bearing surface area, significantly reducing stress and wear on synthetic roundslings, wire rope slings, and high-performance lifting assemblies. Whether you're managing offshore lifts, civil infrastructure projects, or complex heavy rigging operations, the P-6033 gives you the confidence that your slings—and your load—are protected.

Built for the Toughest Lifts

Forged from Grade 8 quenched and tempered alloy steel, the P-6033 combines exceptional strength with proven reliability. A safety bolt configuration—featuring a bolt, nut, and cotter pin—ensures the shackle remains securely locked during permanent rigging connections, even under sustained dynamic or static loading. With working load limits ranging from 7 to 1,550 metric tons (approximately 15,400 lbs to 3,417,000 lbs) and body diameters from 22 mm to 285 mm (7/8" to 11-1/4"), the P-6033 covers the full spectrum of large-scale lifting requirements.

Corrosion Protection for Every Environment

Shackles rated up to 55 metric tons are supplied with a hot-dip galvanized finish for superior corrosion resistance in marine, offshore, and outdoor environments. Larger sizes feature a painted finish with a distinctive silver bow and signature green pin, providing visual identification and durable surface protection for industrial and infrastructure applications.

Standards Compliance & Certification

Every Green Pin® P-6033 shackle is manufactured to a 5:1 design safety factor and conforms to ASME B30.26 standards. Each unit ships with CE marking as standard, with optional material test certificates (MTC 2.1, 2.2, and 3.1) available upon request—ideal for projects requiring full documentation and third-party inspection traceability.

Smart Rigging, Digitally Enhanced

Select sizes of the P-6033 are available with integrated RFID technology, enabling digital asset tracking, inspection record management, and lifecycle monitoring—a future-ready solution for fleet management and compliance-driven lifting operations.

Rated for Extreme Conditions

Designed to perform in temperatures ranging from -20°C to +200°C (-4°F to +392°F), the P-6033 is a dependable choice for operations spanning arctic environments to high-heat industrial settings.

Key Applications:

• Synthetic roundsling and wire rope sling connections
• Offshore and subsea lifting operations
• Heavy infrastructure and civil engineering lifts
• Permanent rigging assemblies requiring certified hardware
• High-capacity load spreading and rigging configurations

Specifications at a Glance:
