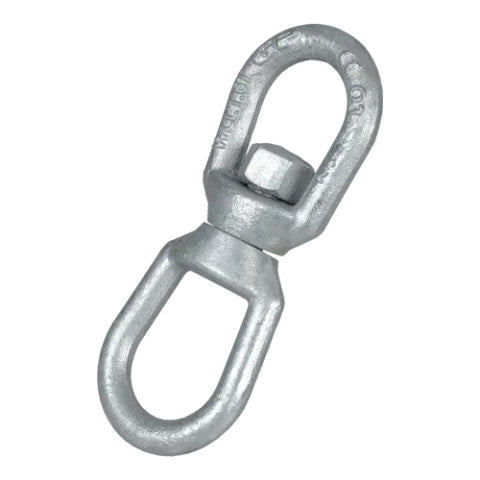

Van Beest Green Pin G-7713 5/8" Eye & Eye Swivel - 5300 lbs WLL
Out of stock
Green Pin® G-7713 Eye & Eye Swivel – Smooth Rotation. Uncompromising Strength.
In rigging systems where load-induced line twist can compromise safety and performance, the Green Pin® G-7713 Eye & Eye Swivel provides the solution. Engineered for seamless in-line rotation under load, this heavy-duty swivel eliminates torsional stress in closed-loop rigging configurations—keeping your lines aligned, your loads stable, and your operation running safely.
Precision-Built for Demanding Applications
The G-7713 is manufactured from high-tensile steel, quenched and tempered for maximum strength and fatigue resistance. Whether deployed in structural rigging, marine tensioning systems, or dynamic industrial lifting assemblies, this swivel is built to perform where reliability is non-negotiable. With working load limits ranging from 0.39 to 20.5 metric tons and sizes from 6 mm to 38 mm body diameter, the G-7713 covers a wide range of rigging requirements from light assembly work to substantial industrial loads.
Corrosion Resistance You Can Count On
Every G-7713 swivel features a hot-dip galvanized finish, providing long-lasting protection against moisture, salt spray, and chemical exposure. This makes it an especially reliable choice for offshore, marine, and outdoor infrastructure applications where surface degradation is an ongoing concern.
Compliance & Certification Ready
The G-7713 meets US Federal Specification RR-C-271, Type VII, Class 2, affirming its suitability for demanding government, military, and commercial rigging projects. Every swivel is built to a 5:1 safety factor, with 2.1 and 2.2 material test certificates available upon request.
Eye & Eye Design for Closed-Loop Versatility
The symmetrical eye-to-eye configuration allows direct connection to hooks, shackles, slings, and chain assemblies—making the G-7713 a versatile component for both permanent and temporary rigging setups.
Key Applications:
- Marine and offshore rigging systems
- Structural and architectural tensioning
- Static and dynamic industrial lifting
- Guy wire and anchor line assemblies
- Cargo securing and mooring operations
Specifications at a Glance:
| Parameter | Value |
|---|---|
| WLL Range | 0.39 – 20.5 metric tons |
| Size Range | 6 mm – 38 mm diameter |
| Design | Eye & Eye (closed-loop) |
| Material | High-tensile steel, quenched & tempered |
| Finish | Hot-dip galvanized |
| Design Factor | 5:1 (MBL = 5× WLL) |
| Compliance | US Federal Spec. RR-C-271, Type VII, Class 2 |
| Available Certs | MTC 2.1, 2.2 |
