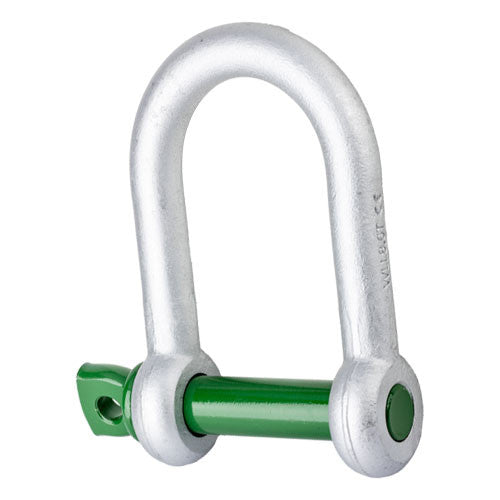

Van Beest Green Pin 1-1/2" Screw Pin BigMouth Shackle - 15.5 Ton WLL

The Green Pin BigMouth Dee Shackle SC is specifically designed for heavy-duty lifting applications where standard shackles fall short. Featuring an extended inside length and a wider mouth opening, this high-performance dee shackle easily connects to non-standard lifting points, making it the ideal solution for demanding projects such as steel sheet pile wall installations.

Manufactured from quenched and tempered Grade 8 alloy steel, the Green Pin® BigMouth Dee Shackle SC delivers exceptional strength and durability. Its hot-dip galvanized finish provides superior corrosion resistance, ensuring long service life even in harsh industrial and marine environments. The screw collar pin design allows for quick assembly and disassembly, increasing efficiency on the job site while maintaining secure load connections.

Engineered with safety as a priority, this shackle features a 5:1 safety factor, meaning the Minimum Breaking Load (MBL) is five times the Working Load Limit (WLL). Certified to EN 10204 type 2.1, 2.2, and 3.1 standards, as well as MTCa and CE requirements, it meets rigorous international quality and compliance benchmarks. With an operating temperature range of -4°F to +392°F, it performs reliably across a wide variety of environments.

Key Features:

• Extended inside length and wide mouth opening for non-standard lifting points
• Ideal for steel sheet pile wall lifting applications
• Grade 8 alloy steel construction, quenched and tempered
• Screw collar pin for fast, secure connection
• Hot-dip galvanized for enhanced corrosion resistance
• 5:1 safety factor for dependable performance
• Certified to EN 10204 (2.1, 2.2, 3.1), MTCa, and CE standards
• Suitable for single-leg and multi-leg lifting systems

Specifications:

• Working Load Limits (WLL): 10,000 lbs (4.6 ton) to 50,000 lbs (22.7 ton)
• Bow Diameter: 5/8" to 1-3/4"
• Pin Diameter: 3/4" to 2"
• Inside Length: 4-1/32" to 8-1/32"
• Weight: 1.86 lbs to 32.8 lbs
