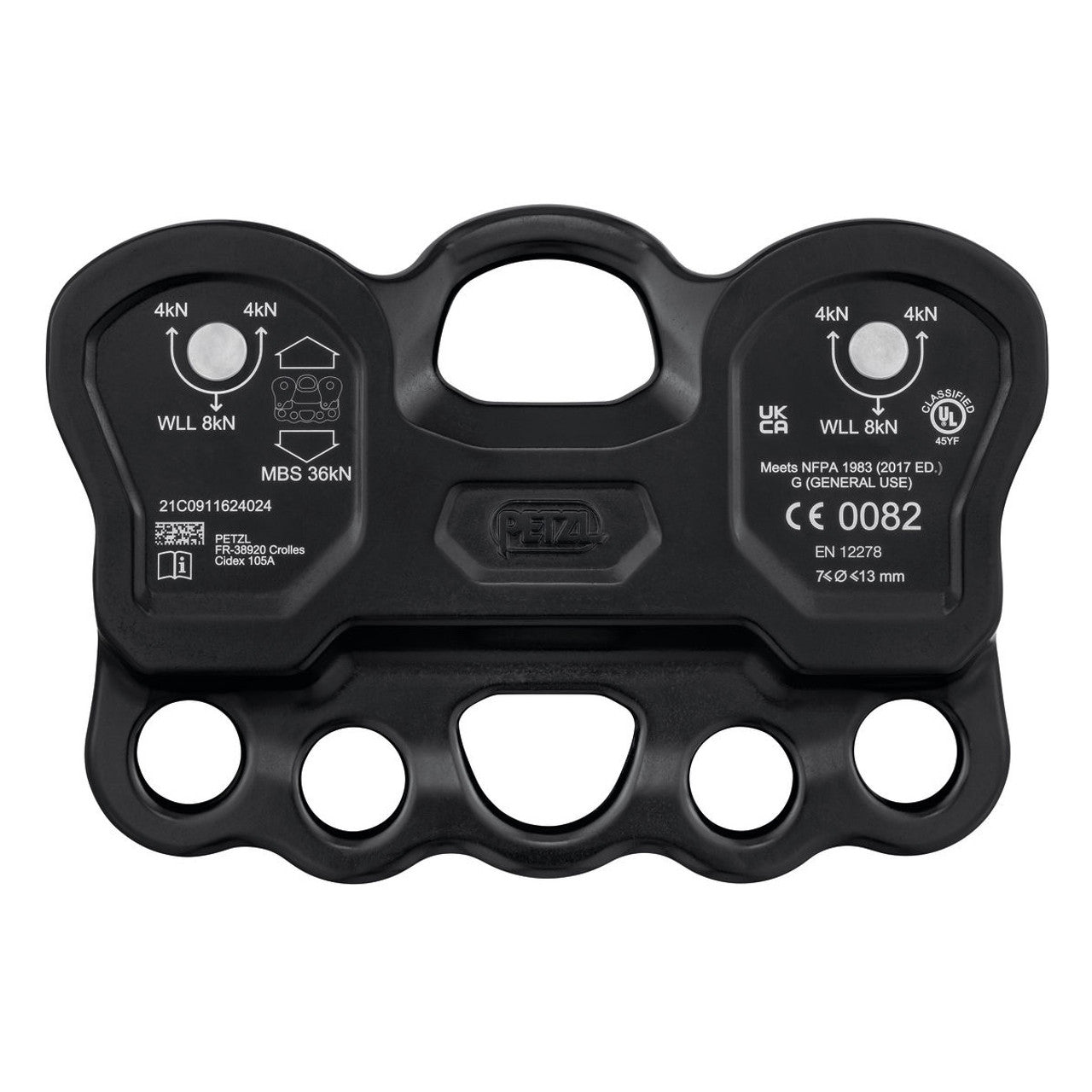

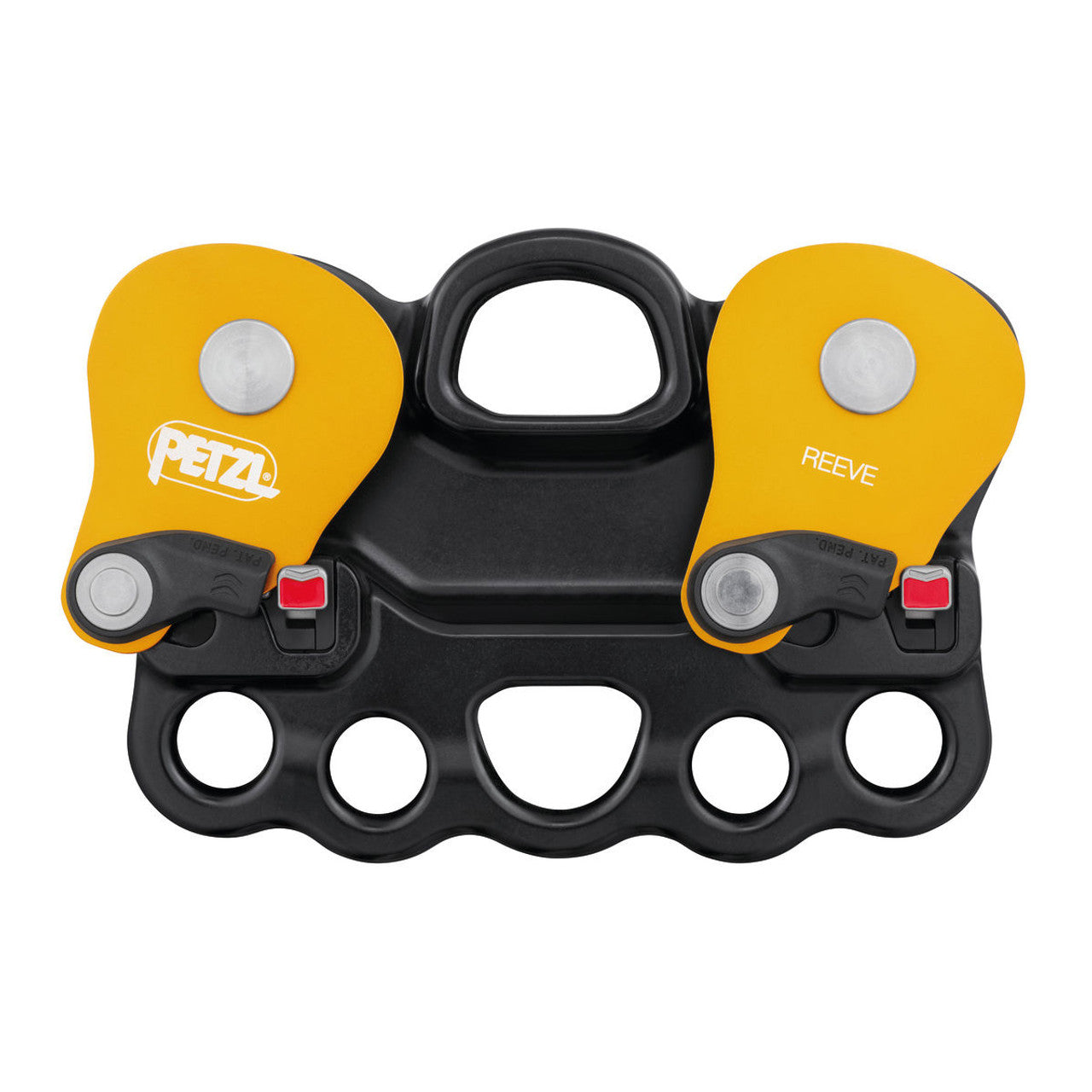

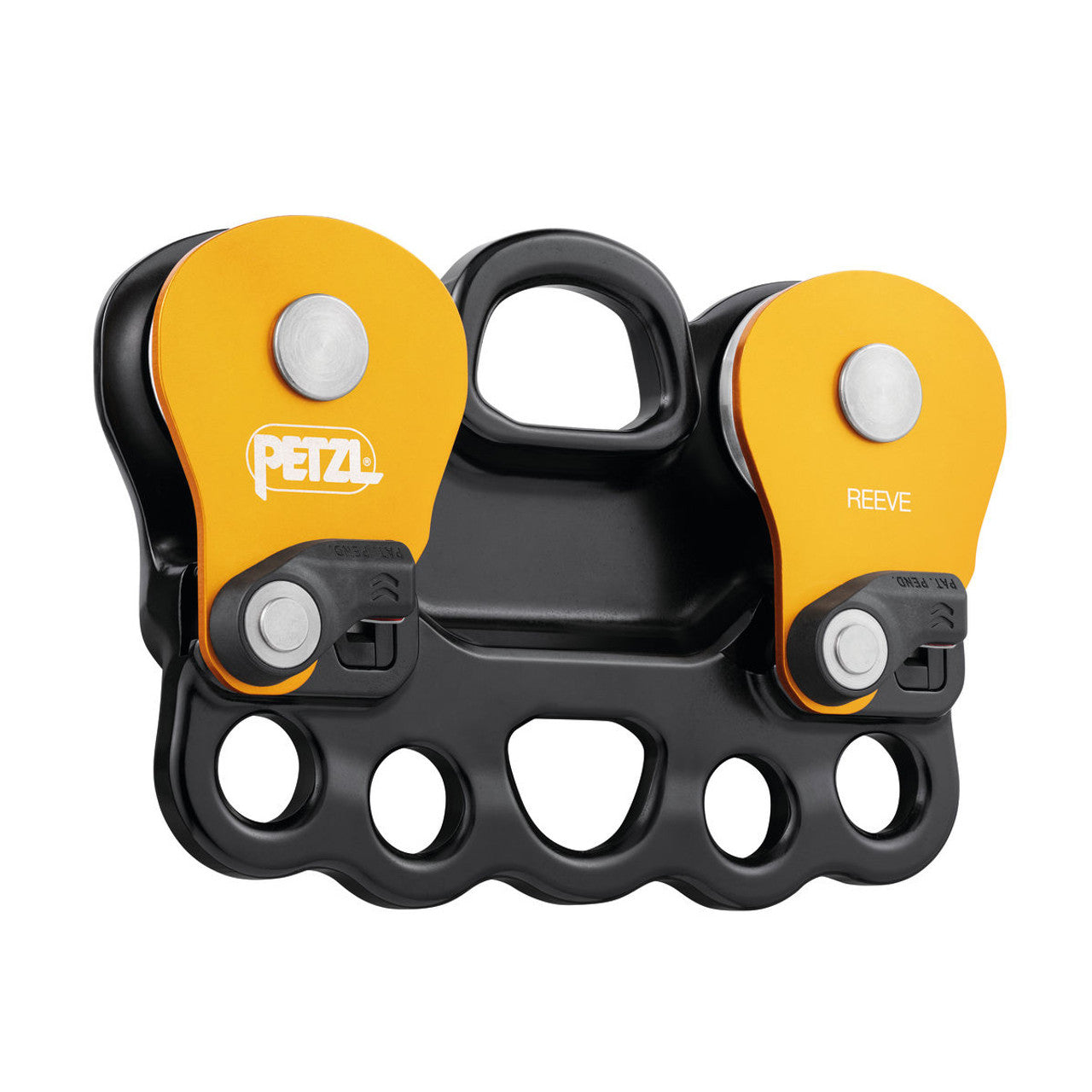

Petzl Reeve

Looking to optimize your rigging game? The Petzl Reeve is a game changer, allowing for efficient and versatile hauling systems on tensioned lines, whether you're on a construction site or out in the wilderness. The compact size and two integrated pulleys of this rigging plate make it a top choice for those seeking maximum functionality with minimal equipment. With the Petzl Reeve, you'll be ready for whatever rigging challenges come your way.

Details

• Weight: 650 g
• Certifications: CE EN 12278, NFPA 1983 General Use
• Materials: Aluminum, stainless steel, nylon
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave type: Sealed Ball Bearings
• Sheave diameter: 38 mm
• Working Load Limit: 8 kN (4 x 2 kN)
• Breaking strength: 36 kN
• Efficiency: 95%
• Triple-action opening of moving side plates, possible even with gloves
• Red indicators provide a visual warning when the side plates are not correctly locked
• Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency
• Possible to rig the system before installing it on the main line

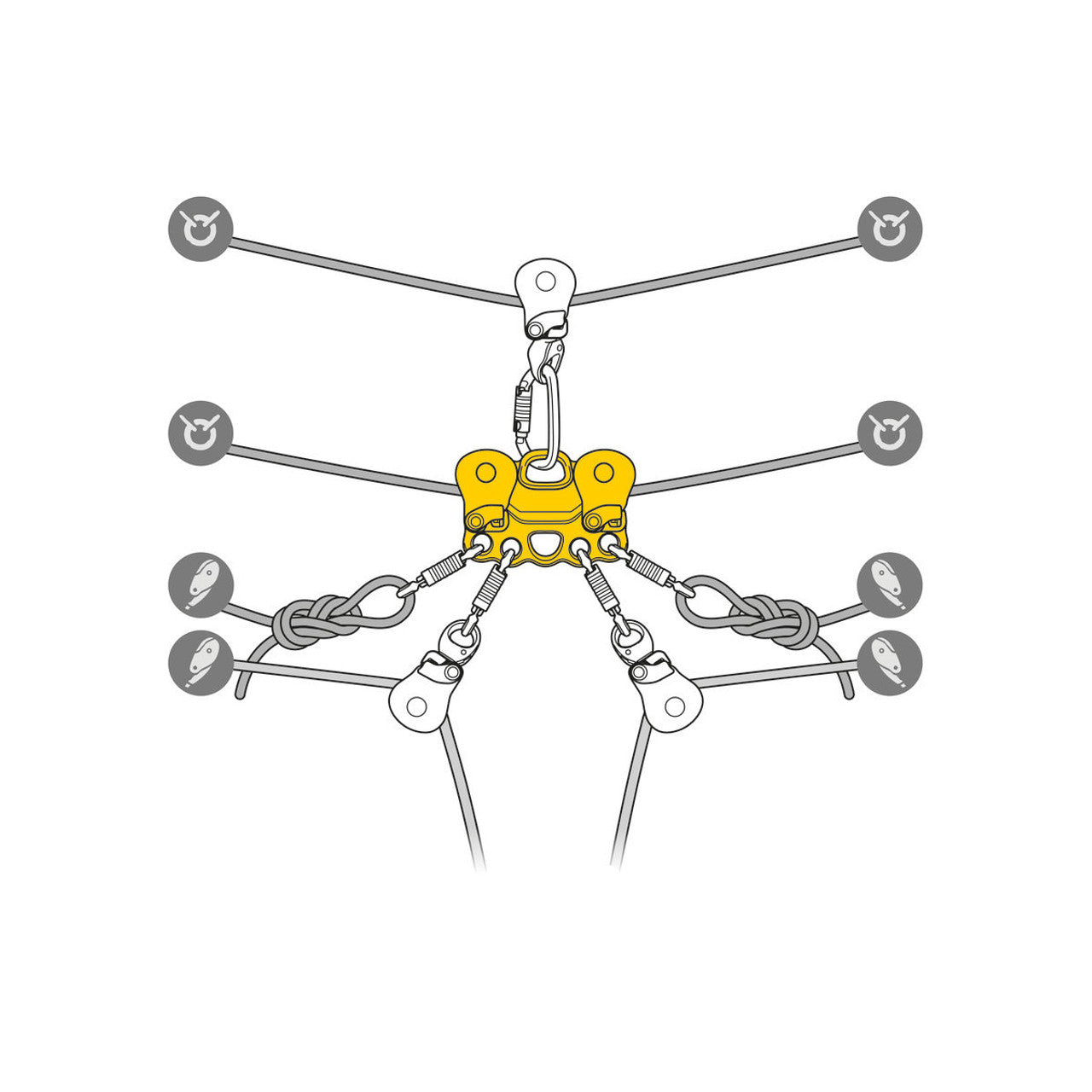

• Multiple configurations and connections are possible
• System can be made redundant by placing two REEVE pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance

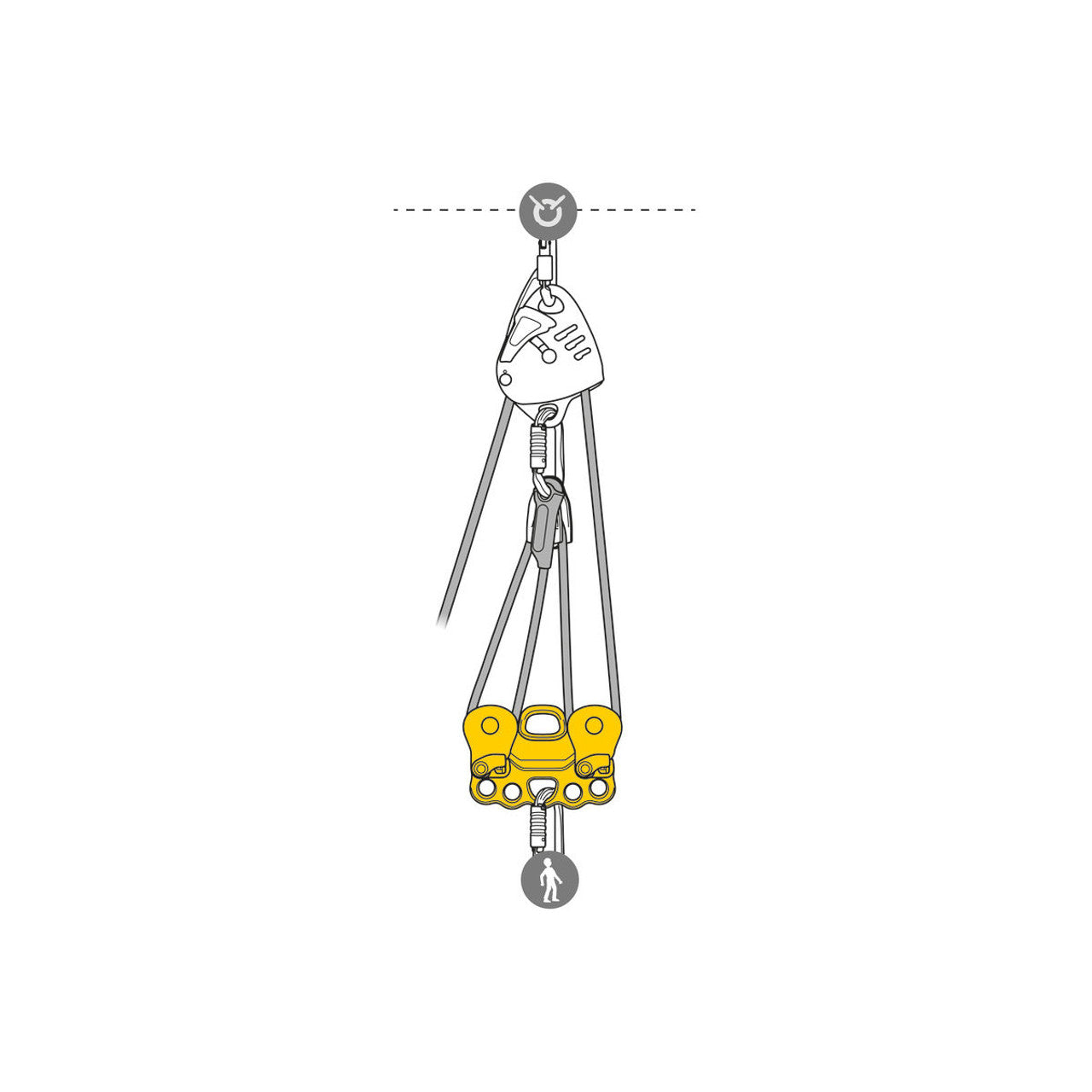

• Pulley can be used in a haul system

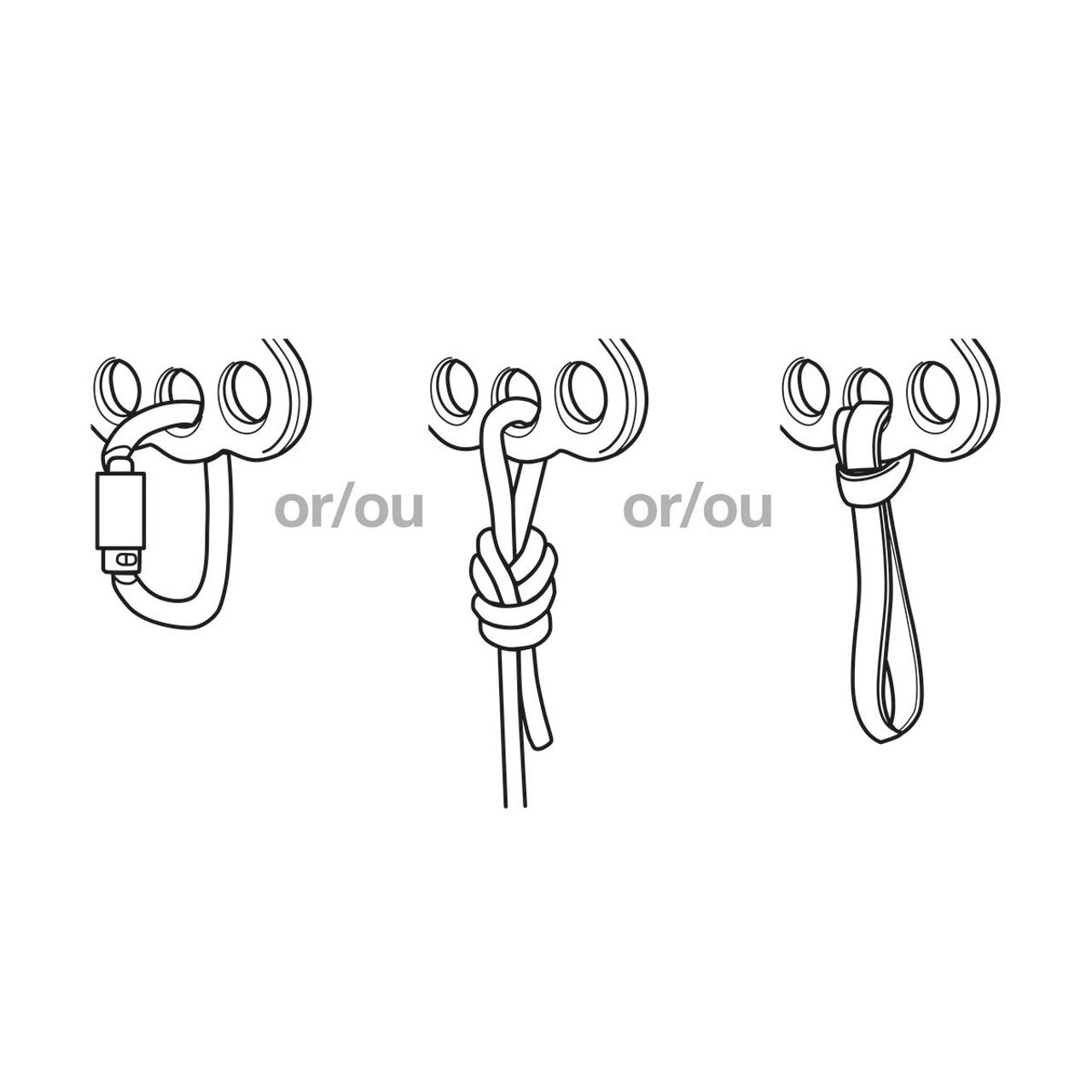

• Hole design allows ropes or slings to be threaded for direct connection
• 19 mm holes allow locking sleeves of most carabiners to pass through
• The odd number of attachment holes enables the system to be centered and balanced
• Up to three people can be connected at the same time

MANUFACTURER PART NUMBER: P005AA00
