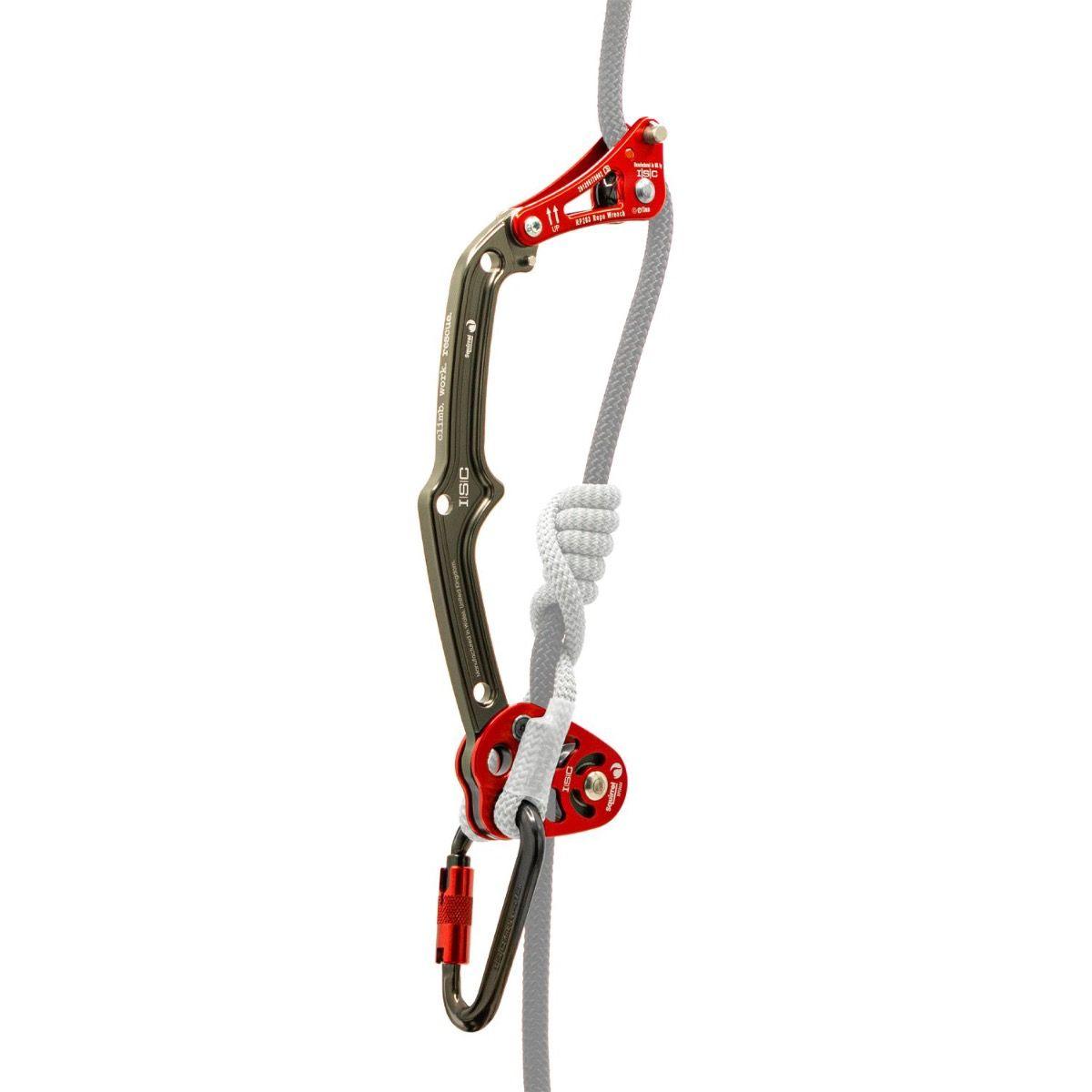

ISC Squirrel Tether with Phlotich

The Squirrel Tether is the ONLY metal tether for the ISC Rope Wrench, designed and manufactured exclusively by ISC in Wales, United Kingdom! The Squirrel Tether is designed for low-friction ascents and optimal engagement of the Rope Wrench, as required during descent and lateral movements within the canopy.

The new Squirrel Tether is manufactured from Aluminium, which ensures that twist and flex in the Rope Wrench system, is minimal. This means that the Rope Wrench remains in the optimal low friction position during ascent, (allowing the climber to achieve maximum climb efficiency), and ensures that the Wrench engages efficiently, as required during lateral movements and descent.

The Squirrel is fitted with a stopper bollard, which keeps the Rope Wrench correctly positioned, to ensure correct engagement on the rope. The stopper bollard also prevents the Rope Wrench from pinching/squashing the user's hand. This means that the user can safely handle the upper or lower part of the tether, when tending/adjusting the system, on the rope.

The Squirrel can be used with an SRS Chest Harness, for hands-free tending of the system, while ascending. The Squirrel offers a choice of four SRS Chest Harness attachment points, allowing users to position their harness, according to the type of chest harness used- and to their personal preference.

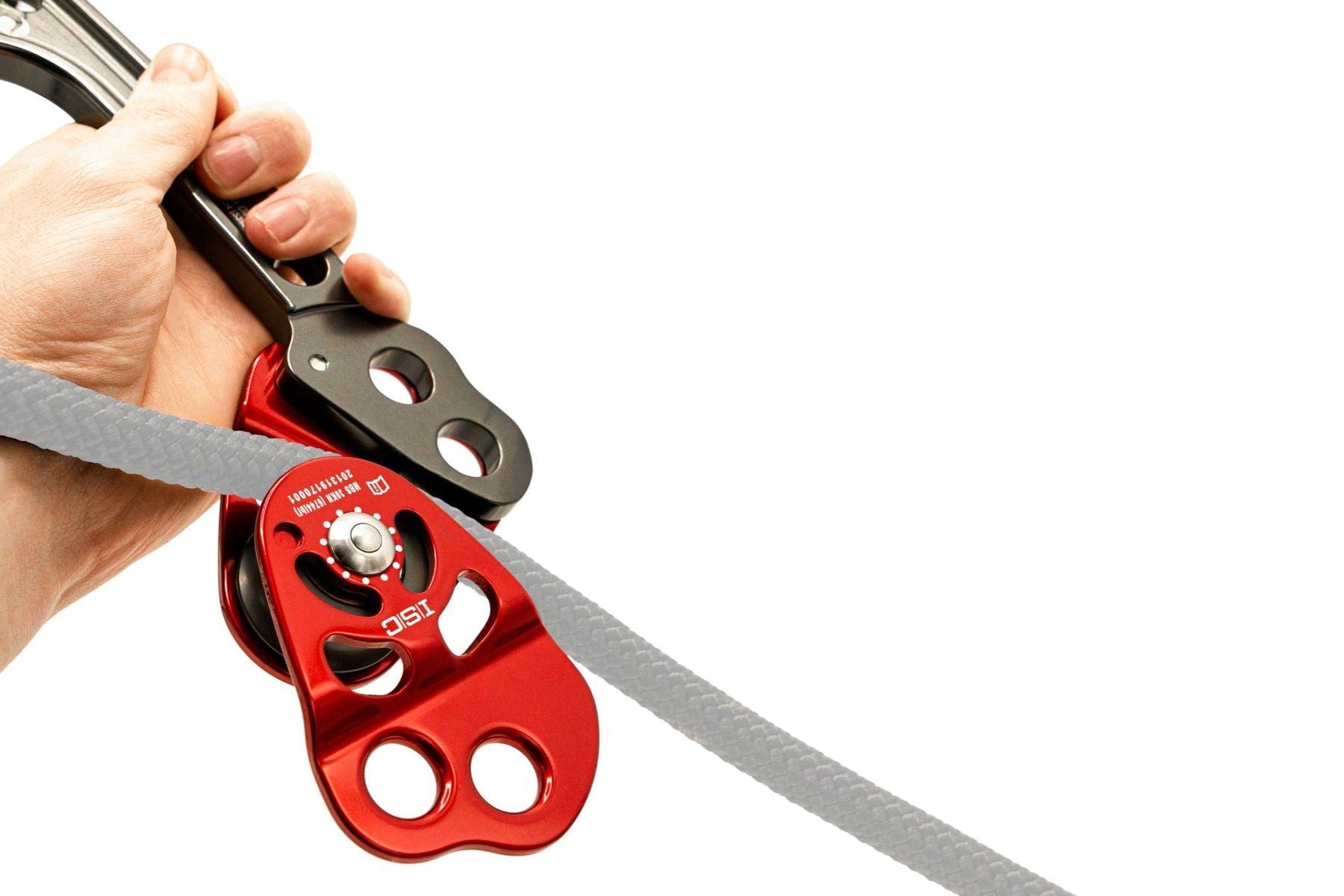

The secondary aperture of the Squirrel Pulley provides an attachment point for the addition of a secondary system, which means that the Squirrel system can be used for rescues.

The Squirrel can be used with the 11-13mm Rope Wrench (RP280) and /or the new 13mm-optimised Rope Wrench (RP283).

Registered Design No. 6108494

Technical Information

Compatible with rope diameter (mm)11-13mm
(MBS) Minimum Breaking Strength (kN)24
(MBS) Minimum Breaking Strength (lbf)5400
ANSI compliant versionAs standard
Serial numberingAs standard
FinishAnodised
Weight (grams)350
Weight (ounces)12
Height (mm)319
Height (inches)12 9/16"

Approved Standards

Options:
RT290A2 Squirrel Tether 'Part of Kit KT282'
(The KT282 Rope Wrench Kit is CE Certified to PPE Regulation 2016/425).

RT290A1 Squirrel Tether 'NOT for PPE'- available OUTSIDE of Europe, ONLY
Meets ANSI Z133.3

Notes

The Squirrel kit does not includes the rope wrench but it is compatible with all Rope Wrench models. When used with the 13mm-optimised Rope Wrench, the Squirrel requires 2 x Spacers (supplied as standard).
