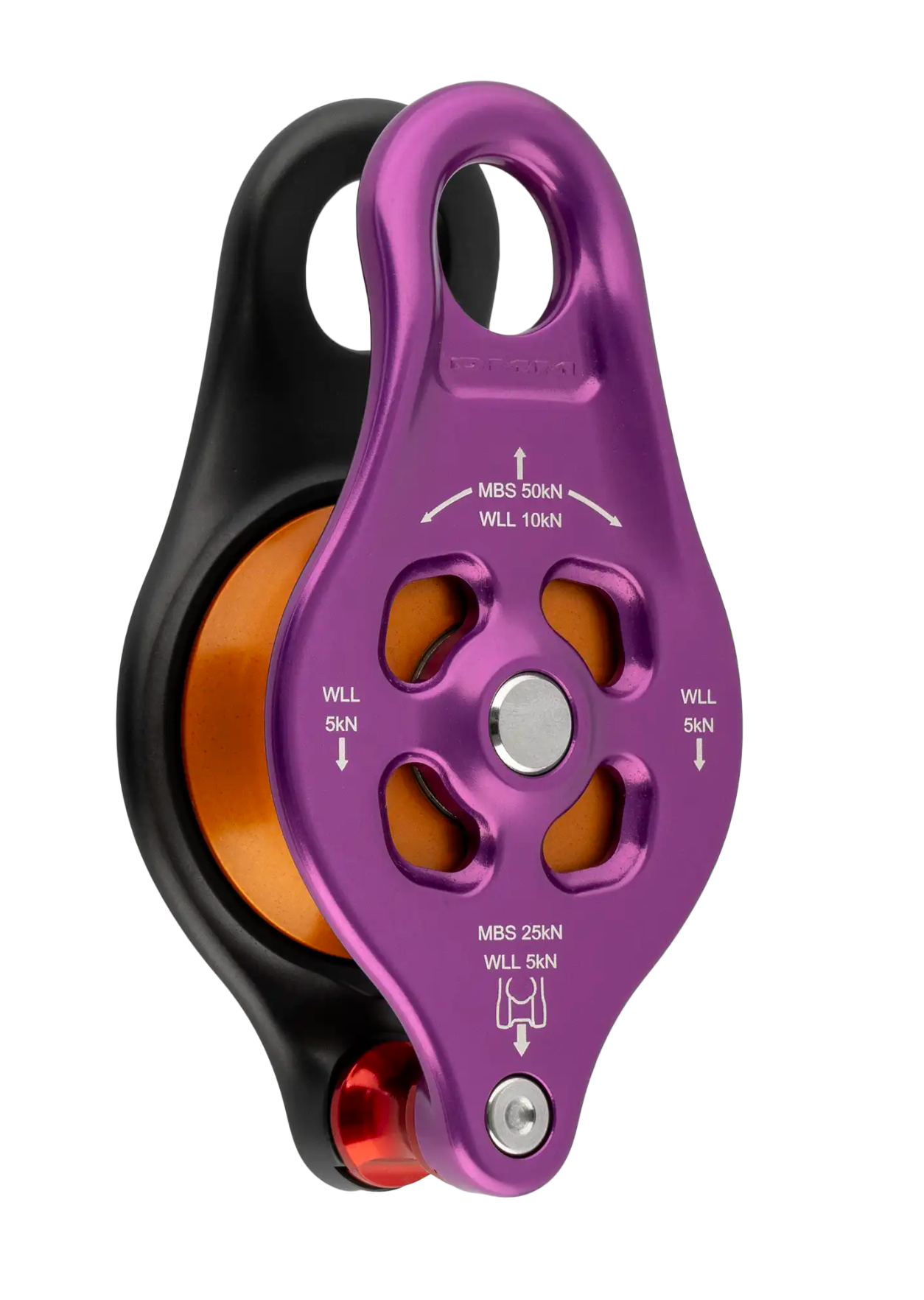

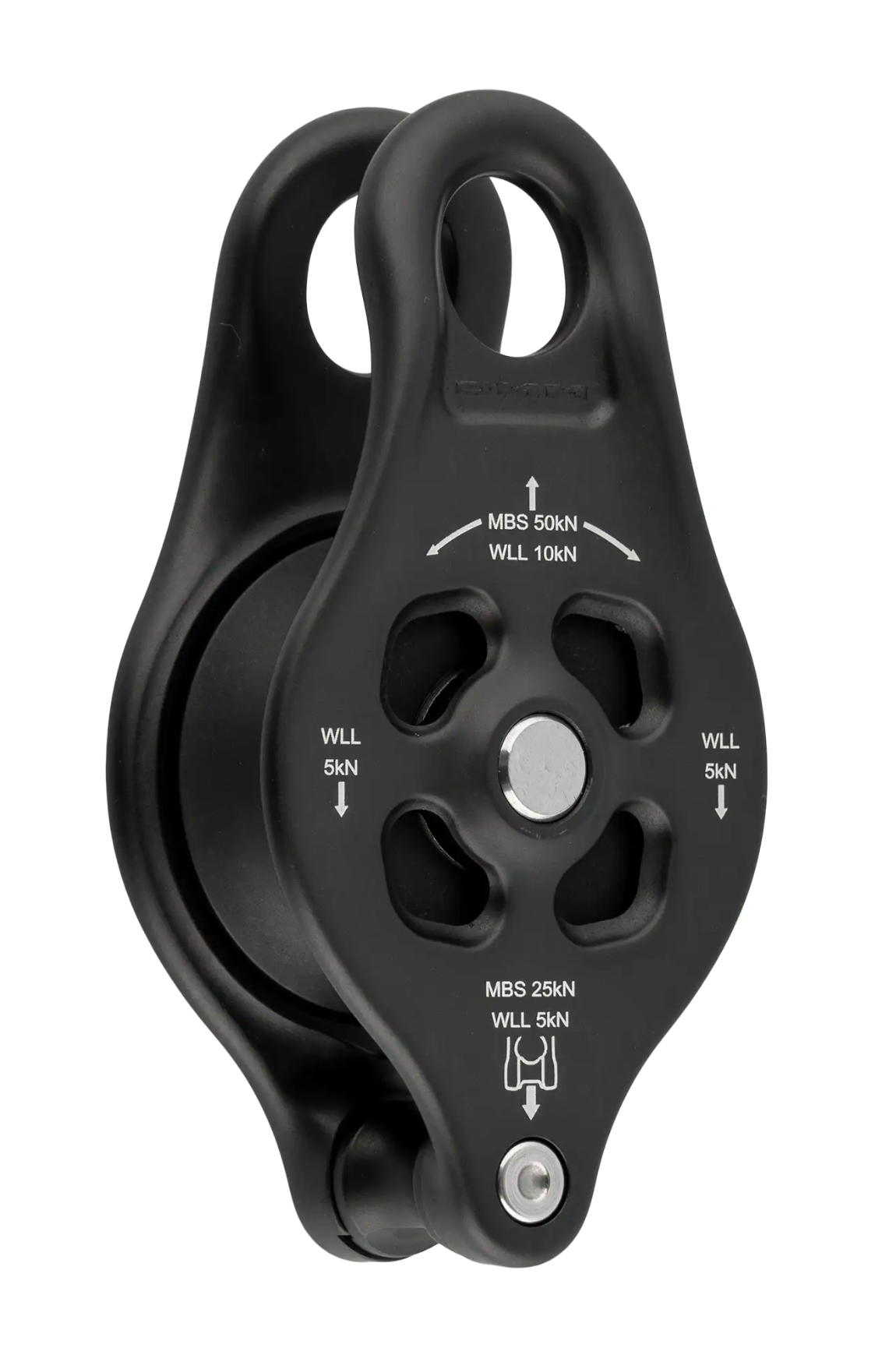

DMM Pinto Rig 2 Pulley

The DMM Pinto Rig 2 Pulley is an advanced evolution of the renowned Pinto series, meticulously engineered to meet the rigorous demands of professional arborists and rigging experts. This robust pulley combines enhanced efficiency with exceptional strength, making it an indispensable tool for complex rigging and hauling operations.

Key Features:

• Expanded 38mm Sheave: Accommodates ropes up to 16mm (5/8") in diameter, providing greater versatility and efficiency in various rigging scenarios.

• Recessed Sheave Design: Ensures a smooth rope channel, preventing snags and maintaining optimal alignment even when ropes are fed at challenging angles.

• Full-Strength Becket with Roller: Incorporates a roller-equipped becket to minimize friction, enhancing the pulley’s performance in mechanical advantage systems.

• Sealed Ball Bearings: Delivers high efficiency and low maintenance, ensuring smooth operation under heavy loads.

• Textile-Friendly Construction: Features smooth, rounded edges and fairleads that are gentle on ropes and textiles, extending the lifespan of your equipment.

Specifications:

• Material: High-strength hot-forged aluminum

• Dimensions: 115 x 60 x 37 mm

• Weight: 222 g

• Minimum Breaking Strength (MBS): 50 kN (11,240 lbs); Becket MBS: 25 kN

• Working Load Limit (WLL): 10 kN; Becket WLL: 5 kN

• Maximum Rope Diameter: 16 mm

• Certifications: EN 12278:2007, NFPA 1983 G

Applications:

• Arboriculture: Ideal for complex rigging tasks, providing reliable performance for tree care professionals.

• Rescue Operations: Essential for efficient hauling and lowering in critical rescue scenarios.

• Industrial Rigging: Suitable for heavy-duty applications requiring robust and dependable equipment.

Why Choose the DMM Pinto Rig 2 Pulley?

Building upon the trusted design of the original Pinto Pulley, the Pinto Rig 2 offers significant enhancements, including a larger sheave and improved rope handling capabilities. Its compact yet sturdy construction ensures it performs exceptionally well in demanding environments, making it a preferred choice for professionals seeking reliability and efficiency in their rigging equipment.

Upgrade your rigging toolkit with the DMM Pinto Rig 2 Pulley and experience unparalleled performance and durability in your operations.
