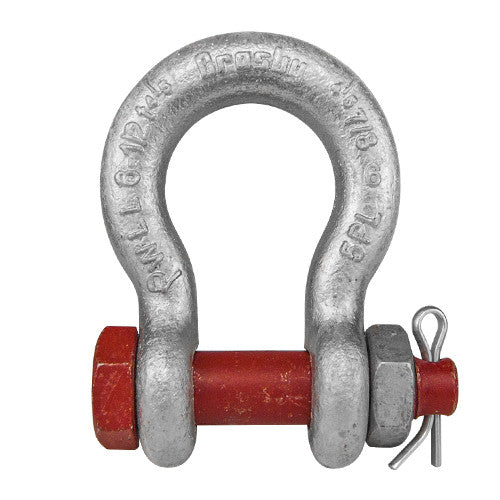

Crosby 7/16" G-2130 Bolt Type Anchor Shackle - 1-1/2 Ton WLL - #1019471
Out of stock
Crosby G-2130 Bolt Type Anchor Shackle – The Red Pin® Standard for Permanent Rigging Security
When a lift demands absolute confidence in the hardware, professionals reach for the Red Pin®. The Crosby G-2130 Bolt Type Anchor Shackle is the benchmark bolt-type shackle in the global rigging industry — forged, quenched, and tempered from high-strength alloy steel, proof-tested, fatigue rated, and built to exceed every major industry standard. If it doesn't have the Red Pin®, it isn't genuine Crosby.
Built for Permanent and Semi-Permanent Rigging
The G-2130's alloy bolt, nut, and cotter pin configuration locks the pin securely in place, making it the correct choice for permanent or semi-permanent rigging connections where screw pins could back out under rotation or vibration. Every shackle carries permanent WLL and Grade 6 markings directly on the body — ensuring instant identification, accurate load planning, and full traceability throughout its service life.
Fatigue Rated. Proof Tested. No Shortcuts.
The G-2130 is fatigue rated to 20,000 cycles at 1.5× WLL for sizes 1/3t through 55t — a rigorous performance standard that confirms long-term reliability under cyclic loading conditions. Shackles rated at 85 metric tons and above are individually proof tested to 2× WLL, providing documented load verification on every large-capacity unit shipped.
Finish Options Engineered for Every Environment
Standard G-2130 shackles are stocked in hot-dip galvanized finish for superior corrosion resistance in marine, offshore, and outdoor service. Self-colored versions are available by special order. Sizes 3/8" and below receive mechanical galvanizing. The 85t, 120t, and 150t models feature hot-dip galvanized bows with Dimetcote® coated and red-painted bolts. Rated for service from -40°C to +204°C (-40°F to +400°F).
Certification for the Most Demanding Projects
The G-2130 meets or exceeds ASME B30.26 and US Federal Specification RR-C-271H, Type IVA, Grade A, Class 3. DNV type-approved models (G-2130OC) cover the 3.25t to 25t range, certified to DNV Certification Notes 2.7-1. ABS type approval is available per 2016 Steel Vessel Rules. Standard 3.1 certification available from 3.25t to 25t.
Key Applications:
- Permanent and semi-permanent crane and hoist rigging
- Offshore platform, marine, and subsea lifting
- DNV-certified offshore container rigging
- Heavy industrial and infrastructure lifting operations
- ABS-certified marine vessel lifting appliances
Specifications at a Glance:
| Parameter | Value |
|---|---|
| Type | Bolt, nut & cotter pin (anchor/bow) |
| Material | Forged alloy steel, quenched & tempered |
| Grade | Grade 6 |
| Finish | Hot-dip galvanized (standard); self-colored (special order) |
| Temperature Range | -40°C to +204°C (-40°F to +400°F) |
| Fatigue Rating | 20,000 cycles at 1.5× WLL (1/3t–55t) |
| Proof Test | 2× WLL (≥85t, individually tested) |
| Standards | ASME B30.26, RR-C-271H Type IVA Grade A Class 3 |
| DNV Approval | G-2130OC: 3.25t–25t, DNV 2.7-1 |
| ABS Approval | Per 2016 Steel Vessel Rules |
| Identification | Red Pin® — genuine Crosby mark |
