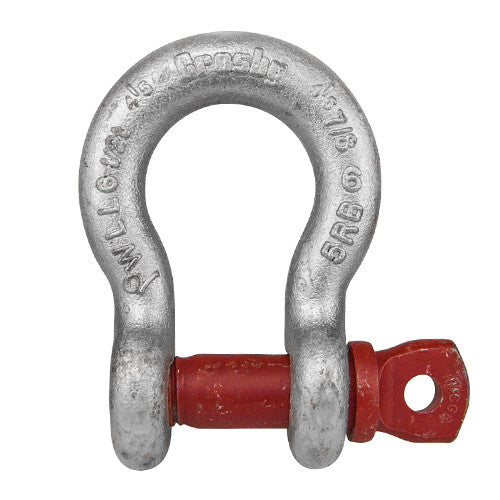

Crosby 1-1/4" G-209 Screw Pin Anchor Shackle - 12 Ton WLL - #1018570
Out of stock
Crosby G-209 Screw Pin Anchor Shackle – The Red Pin® Standard for Everyday Rigging
Few pieces of rigging hardware have earned the universal trust that the Crosby G-209 commands. The go-to screw pin anchor shackle for lifting, rigging, and towing across every major industry, the G-209 combines Grade 6 forged alloy steel construction with proof testing, fatigue rating, and the unmistakable Red Pin® — your assurance of genuine Crosby quality in every unit.
Forged, quenched, and tempered for consistent strength and toughness, fatigue rated to 20,000 cycles at 1.5× WLL, and approved for use from -40°C to +204°C (-40°F to +400°F), the G-209 is stocked hot-dip galvanized as standard (mechanically galvanized on sizes 3/8" and below), with self-colored versions available by special order. It meets or exceeds ASME B30.26 and US Federal Specification RR-C-271H, Type IVA, Grade A, Class 2. Optional certifications — including ABS, DNV, and Lloyd's proof test certificates and Charpy impact testing to 42J at -20°C — are available on request at time of order.
Every shackle carries permanent WLL and Grade 6 markings for instant field identification and full load traceability.
Specifications at a Glance:
| Parameter | Value |
|---|---|
| Grade | Grade 6 |
| Material | Forged alloy steel, quenched & tempered |
| Pin Type | Alloy screw pin |
| Finish | Hot-dip galvanized (standard); self-colored (special order) |
| Fatigue Rating | 20,000 cycles at 1.5× WLL |
| Temperature Range | -40°C to +204°C (-40°F to +400°F) |
| Standards | ASME B30.26, RR-C-271H Type IVA Grade A Class 2 |
| Optional Certs | ABS, DNV, Lloyd's; Charpy 42J at -20°C on request |
| Identification | Red Pin® + permanent WLL & Grade 6 marking |
