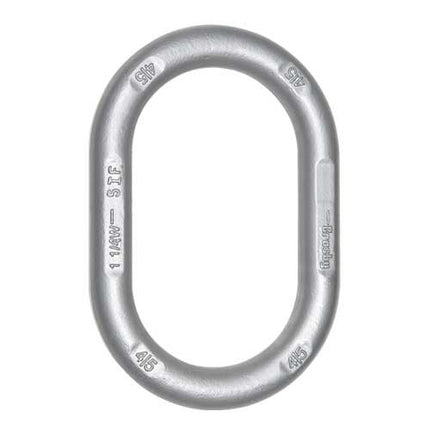

Crosby 3/4" A-342W Alloy Master Link - 12300 lbs WLL - #1014285

Crosby A-342 Master Link – When the Entire Load Rests on One Link, Make It This One.

Every multi-leg sling assembly, every crane hook connection, every critical overhead lift ultimately concentrates its entire load into a single master link. That's not the place for a welded ring. That's the place for a Crosby A-342.

Why Forged Beats Welded — Every Time

Welded master links are commonplace. They're also a compromise. The welding process introduces heat-affected zones, potential discontinuities, and variable strength profiles that no amount of post-weld treatment can fully eliminate. The A-342 is forged as a single continuous piece — no welds, no joins, no weak points. The result is a uniform grain structure that flows uninterrupted through the entire link body, delivering consistent tensile strength, superior fatigue resistance, and the kind of long-term reliability that welded alternatives simply cannot match.

See Overload Before It Becomes a Failure

The A-342 incorporates Crosby's patented QUIC-CHECK® deformation indicators — a forged-in visual inspection feature that makes overload detection immediate and tool-free. At a glance, inspectors and riggers can confirm whether the link geometry remains within safe parameters or has experienced deformation that warrants removal from service. In high-frequency lifting environments and formal inspection programs, QUIC-CHECK® turns a time-consuming assessment into a seconds-long visual check.

Every Link Tested. Every Link Traceable.

There's no batch sampling here. Every A-342 is individually proof tested using specially sized fixtures that prevent localized point loading — ensuring test conditions reflect real sling geometry rather than optimized lab setups. Each forging carries a Product Identification Code (PIC) with raised markings for size, Crosby, and USA, creating an unbroken traceability chain from raw material through to certified lift documentation.

Rated to 20,000 fatigue cycles at 1.5× WLL, manufactured from quenched and tempered alloy steel, and exceeding all ASME B30.26 requirements — including fatigue life, impact properties, and material traceability beyond the standard's scope — the A-342 is the master link specification for professionals who understand that the most important link in the system deserves the most rigorous engineering. Available in standard and "W" sizes with enlarged inside dimensions for additional hook and hardware clearance.

Specifications at a Glance:
